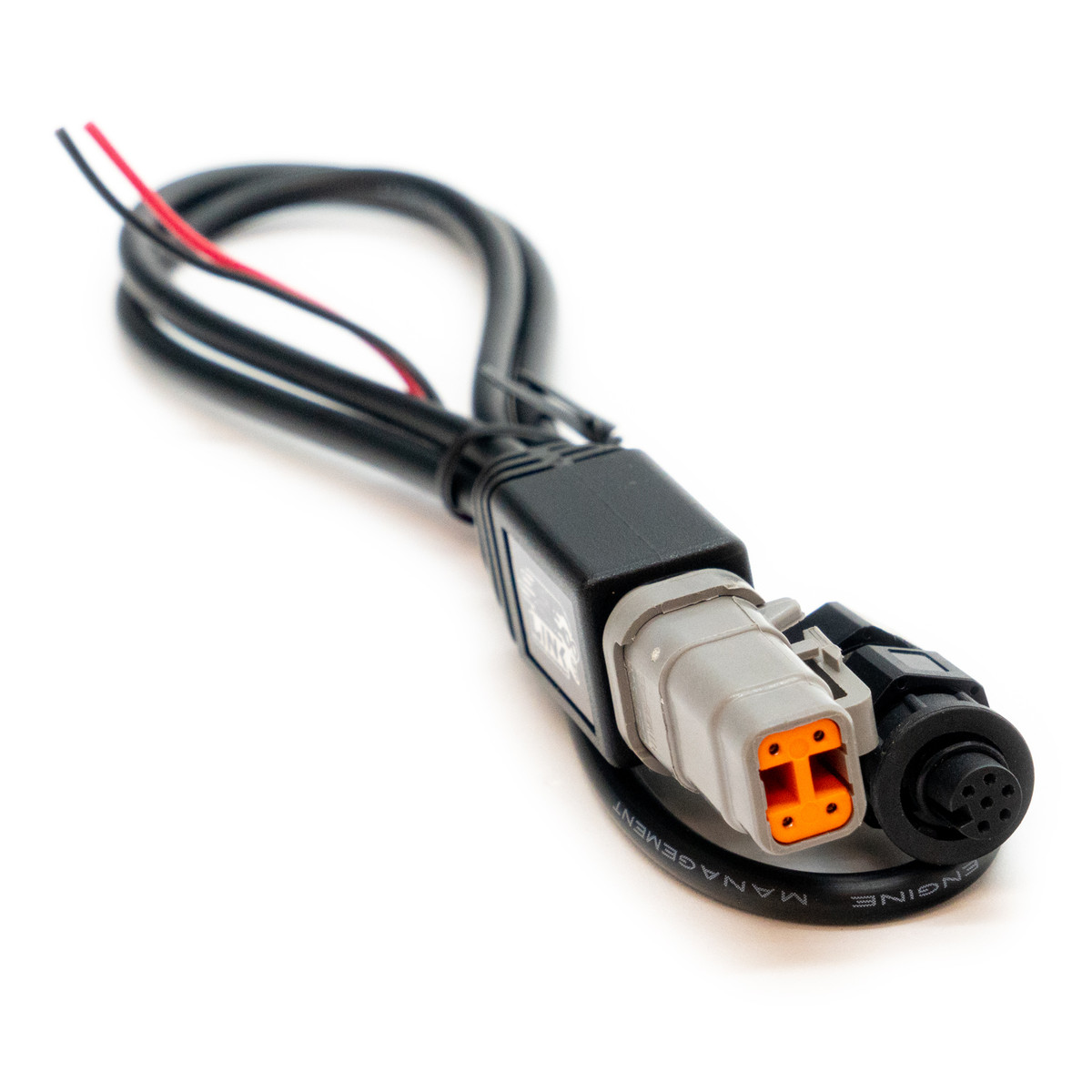

Can kabel CANLTW
630 SEK
CAN kabel för WireIn ECU’s (6Pin CAN) För att ansluta en Dash, Can keypad, Can Lambda mm
Går att använda på PnP styrenheter tillsammans med CANPCB (101-0022)
- Betala säkert med klarna
- Ring oss, vi svarar snabbt!
Beskrivning
Art.nr: 101-0211
Required to add CAN communication to WireIn ECU's which have CAN accessible via the 6Pin round CAN connector on the front of the ECU.
Compatible ECU's:
G4X/G4+ Xtreme (CAN1)
G4X/G4+ Fury (CAN1)
G4+ Force (CAN1)
G4+ Thunder (CAN1)
Specs
DTM4 Male to LTW 6Pin. 12V & GND Flying Leads. CAN Loom Length 300mm (Flying lead length 500mm)
DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
Compatible ECU's:
G4X/G4+ Xtreme (CAN1)
G4X/G4+ Fury (CAN1)
G4+ Force (CAN1)
G4+ Thunder (CAN1)
Specs
DTM4 Male to LTW 6Pin. 12V & GND Flying Leads. CAN Loom Length 300mm (Flying lead length 500mm)
DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
